API “The BOX” Operator’s Manual

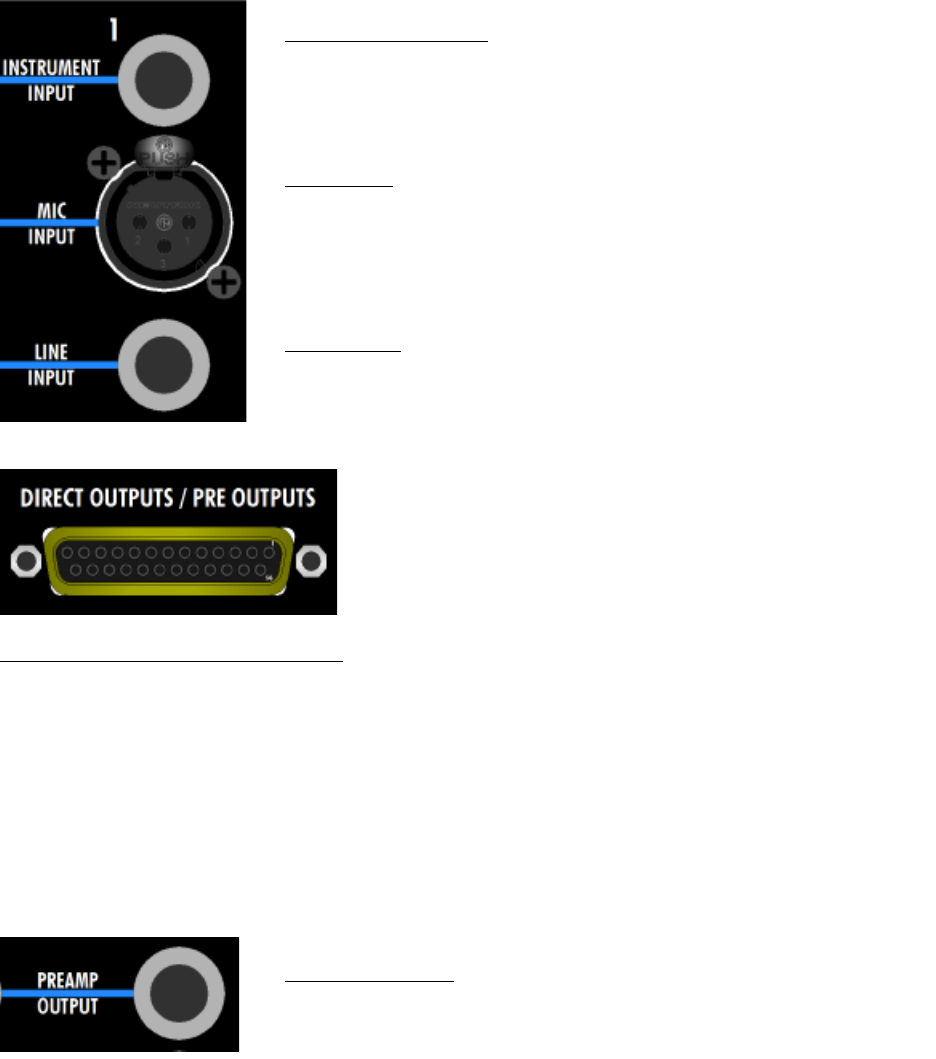

Rear Panel Preamp Connections

All four input channels have the same preamp input connections on the rear panel.

DIRECT OUTPUTS / PRE OUTPUTS: DB-25, balanced, low-impedance, line-level

• Outputs 1-4: Direct out (post-fader) or preamp output from input channels 1-4

o Fed post-fader/mute by default (direct output)

o Preamp output replaces post-fader output if DIR PRE is engaged

• Outputs 5 & 6: Insert send from input channels 1 & 2

• Outputs 7 & 8: Preamp outputs from input channels 3 & 4

• Standard pin-out: 1-4=direct or preamp outputs 1-4, 5-6=insert send 1-2, 7-8=preamp

outputs 3-4

In addition to the DB-25 connector, input channels 3 & 4 have a separate preamp

output that’s part of an extra set of connections that support the 500 slots.

INSTRUMENT INPUT: ¼” tip-sleeve, unbalanced, high-

impedance

• MIC must be engaged to use this input

• Replaces MIC signal as preamp input

MIC INPUT: 3-pin female XLR, balanced, low-impedance

• MIC must be engaged to use this input

• Provides phantom power when the 48v switch is

engaged

LINE INPUT: ¼” tip-ring-sleeve, balanced, low-impedance

• MIC must be disengaged to use this input

The DIRECT OUTPUTS / PRE OUTPUTS connector

carries direct or preamp outputs from input

channels 1-4, as well as the insert send from

input channels 1 & 2 and the preamp outputs

from input channels 3 & 4.

PREAMP OUTPUT: ¼” tip-ring-sleeve, balanced, low-

impedance, line-level

• Not available on input channels 1 & 2
