API “The BOX” Operator’s Manual

9.0 Talkback

“The BOX” is equipped with a complete talkback system for use when recording. The talkback

systems includes:

• Internal electret microphone

• Level control

• Momentary talk button

• Preset routing

Talkback can be routed to the following:

• SLATE: Program bus

• AUX: Auxiliary masters

• CUE: Cue master

The talkback signal flow is as follows:

⇒

SLATE

⇒

trim

⇒

program bus

⇑

Talkback mic

⇒

preamp

⇒

TALK button

⇒

routing

⇒

AUX

⇒

trim

⇒

aux masters

⇓

⇒

CUE

⇒

trim

⇒

cue master

9.1 Talkback Microphone and Trims

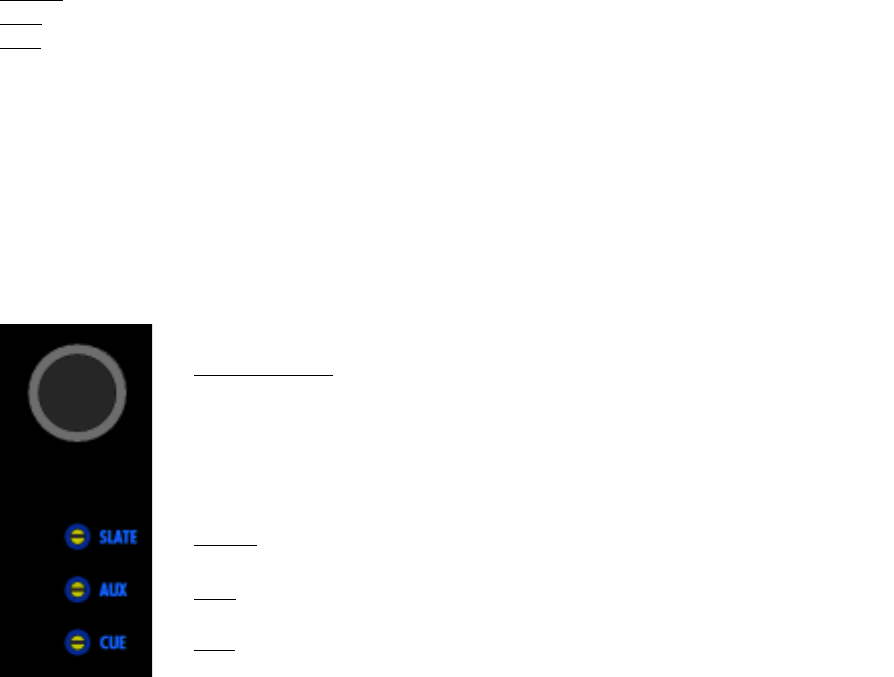

MICROPHONE: Internal talkback microphone

• Electret condenser mic

SLATE: Talkback to program bus calibration trim-pot

AUX: Talkback to auxiliary master calibration trim-pot

CUE: Talkback to cue master calibration trim-pot
