API “The BOX” Operator’s Manual

13.1 Input Channels 1-4 Connections

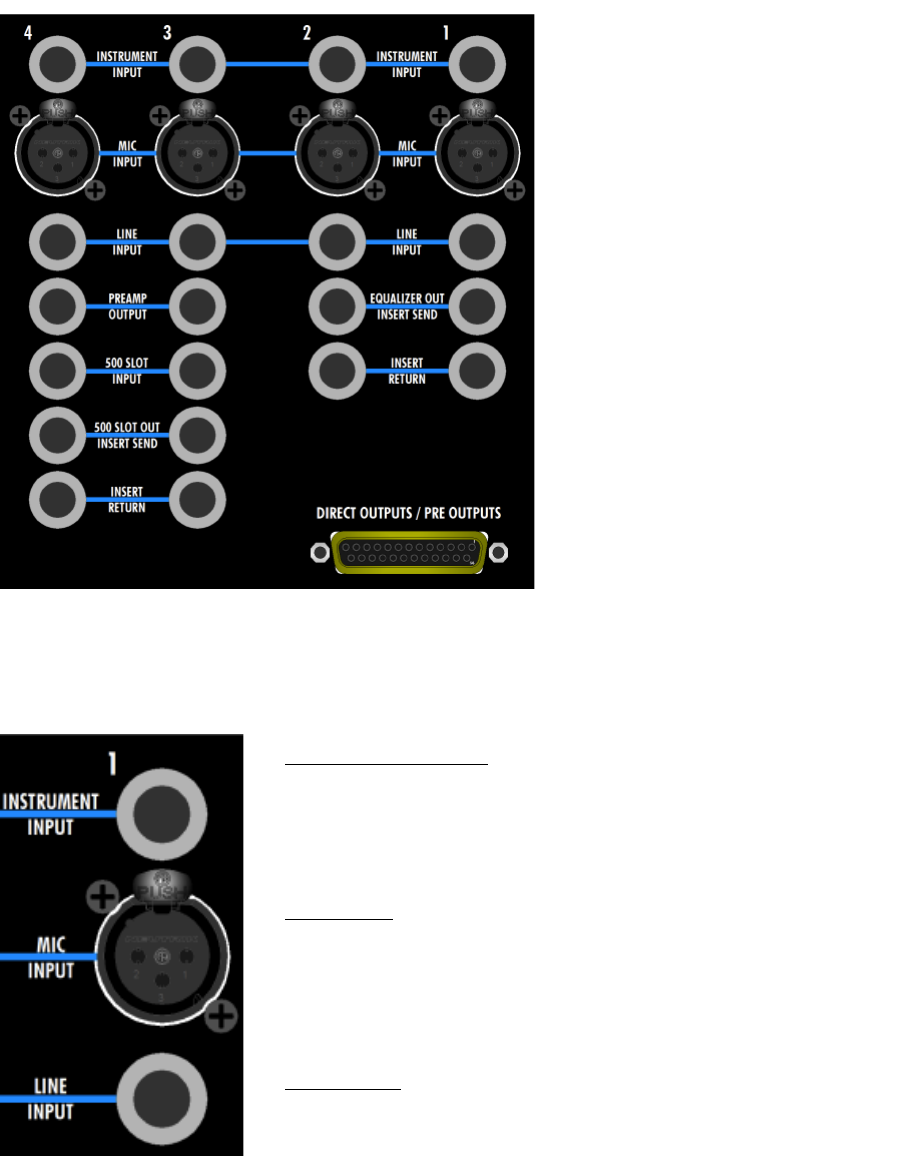

Input Channel Preamp Connections

All four input channels have the same preamp input connections on the rear panel.

The rear panel provides a

comprehensive and flexible

set of input channel

connections.

Connections include:

• Preamp inputs (mic,

instrument, and line)

• Insert sends and returns

• Direct outputs / preamp

outputs

• Preamp output / 500 slot

input (channels 3 & 4

only)

INSTRUMENT INPUT: ¼” tip-sleeve, unbalanced, high-

impedance

• MIC must be engaged to use this input

• Replaces MIC signal as preamp input

MIC INPUT: 3-pin female XLR, balanced, low-

impedance

• MIC must be engaged to use this input

• Provides phantom power when the 48v switch is

engaged

LINE INPUT: ¼” tip-ring-sleeve, balanced, low-

impedance

• MIC must be disengaged to use this input
